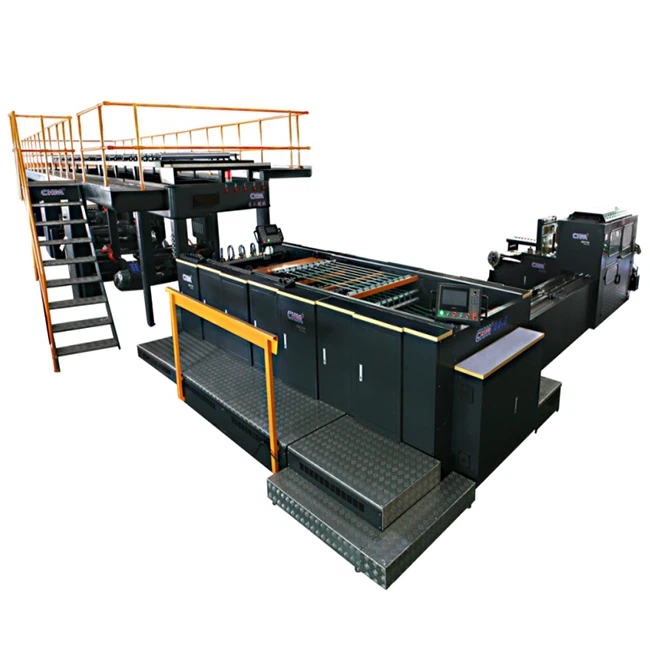

A4 Daim Ntawv Txiav Siab Tsis Siv Neeg Tshuab
CHM-A4 Series Tag Nrho Tsis Siv Neeg A4 Luam Ntawv Reams Ua Tej Tshuab Ntau Lawm Kab Nrog Rotary riam txiav. Qhov no yog ib qho kev tshaj lij A4 loj luam ntawv cov khoom siv.
Khoom Taw qhia
CHM-A4 Series Tag Nrho Tsis Siv Neeg A4 Luam Ntawv Reams Ua Tej Tshuab Ntau Lawm Kab Nrog Rotary riam txiav. Qhov no yog ib qho kev tshaj lij A4 loj luam ntawv cov khoom siv khoom siv.Qhov kev khiav haujlwm ruaj khov ncav cuag 230m / min. Tag nrho tsis siv neeg ntau lawm kab, los ntawm daim ntawv yob mus rau nplooj ntawv, pob reams, pob nyob rau hauv lub thawv thawv.Peb tau saws lub siab tshaj plaws mechanical tsim qauv thiab hluav taws xob tswj system.Yog li nws yog ib qho yooj yim rau kev khiav lag luam.
youtube
KhoomParameter
|
Daim ntawv dav |
Tag nrho dav 850mm, net dav 840mm |
|
Txiav cov lej |
4 txiav-A4 210mm (dav) |
|
Daim ntawv yob txoj kab uas hla |
Max. F 1500 hli. Min. F600mm |
|
Daim ntawv core txoj kab uas hla |
3 "(76.2mm) los yog 6" (152.4mm) los yog raws li cov neeg xav tau |
|
Packing Ntawv qib |
Cov ntawv luam qib siab; Cov ntawv ua haujlwm qib siab; Qib Siab Dawb Ntoo ntawv thiab lwm yam. |
|
Daim ntawv hnyav |
60-100g/m² |
|
Daim ntawv ntev |
297mm (tshwj xeeb tsim rau A4 daim ntawv, txiav ntev yog 297mm) |
|
Ream tus nqi |
500 daim ntawv Max. Qhov siab 45-55mm |
|
Ntau lawm ceev |
Max 0-250m/min (nyob ntawm cov ntawv sib txawv) |
|
Max. Tus lej txiav |
841 / min |
|
Output ntawm ream |
27 ream / min |
|
Load ntawm txiav |
400g/m2 (4×100g/m²) |
|
Txiav raug |
± 0.2 hli |
|
Txiav mob |
Tsis muaj qhov sib txawv ntawm qhov ceev, tsis tawg, txiav tag nrho cov ntawv ntawm ib zaug thiab xav tau daim ntawv tsim nyog. |
|
Main fais fab mov |
3 * 380V / 50HZ |
|
Qhov hluav taws xob |
220V AC / 24V DC fais fab mov |
|
Hwj chim |
32 kWm |
|
Kev siv cua |
300 NL / min |
|
Cua siab |
6 bar |
|
Ntug txiav |
2 × 10mm |
|
Txuj kev nyab xeeb |
Tsim raws li tus qauv kev nyab xeeb ntawm Tuam Tshoj |
Khoom feature
1.Rotary riam txiav, khiav ceev yog ruaj khov heev
2.Txiav precision 0.2mm
3.High peev xwm 20-30 reams ib feeb
4.Txoj kab ntau lawm tsis siv neeg, los ntawm daim ntawv yob mus rau nplooj ntawv, pob reams, ntim rau hauv lub thawv thawv.
5.Kev khiav hauj lwm yooj yim, tsuas yog xav tau 3 tus neeg ua haujlwm
Siv tau
CHM-A4 series tshuab muaj ntau yam zoo los tsim A4 chaw ua haujlwm luam ntawv reams.A4 daim ntawv luam muaj kev lag luam loj heev. Peb tau pab ntau tshaj 150 cov neeg siv khoom tsim cov kab ntau lawm hauv cov teb chaws thoob ntiaj teb. Lawv tsis tas yuav muaj peev xwm loj heev, tab sis lawv xav tau cov kab ntau lawm nrog tus nqi lag luam. Peb lub tshuab tuaj yeem ncav cuag lawv qhov kev thov.
Product details
FAQ
1.Yog tias lub tuam txhab uas nyuam qhuav pib ua lag luam ntawm A4 daim ntawv, koj tuaj yeem ua dab tsi?
Ua ntej, peb yuav muab phau ntawv qhia cov khoom lag luam los pab koj kawm paub txog kev luam ntawv. Tsis tas li ntawd, koj tuaj yeem tuaj rau peb lub Hoobkas rau kev kawm ntawm qhov chaw. Txais tos kom tso koj qhov kev sib cuag rau peb.
2.Koj puas muag daim ntawv reels rau kev lag luam?
Qhov tseeb peb yog cov chaw tsim khoom ntawm lub tshuab. Yog tias koj xav tau daim ntawv yob xa khoom, peb yuav pab koj nrhiav qee lub tuam txhab zoo hauv Suav teb.
3.Lub tshuab yog tag nrho cov kab ntau lawm, txoj cai?
Lub tshuab series yog tag nrho cov kab ntau lawm los ntawm daim ntawv yob mus rau cov ntawv txiav thiab ntim lawv rau reams. Tab sis koj tseem tuaj yeem yuav daim ntawv yob rau cov ntawv txiav hauv qhov pib. Daim ntawv txiav tshuab chav tsev thiab ream wrapping tshuab yog cais.
