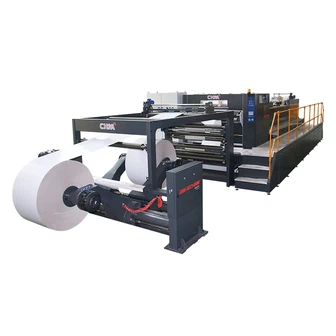

Dual Rotary Ntawv Sheeter Tshuab
CHM-SGT1400H High Precision Synchronize-fly Sheeter nta fiber ntau-tsawg thiab huv txiav nrog siab precisions. Qhov zoo tshaj plaws rau daim ntawv board, daim duab kos duab, kraft ntawv thiab cov ntawv ntim ntawv lossis lub rooj tsavxwm thiab lwm yam.
Khoom Taw qhia
CHM-SGT1400H High Precision Synchronize-fly Sheeter nta fiber ntau-tsawg thiab huv txiav nrog siab precisions. Qhov zoo tshaj plaws rau daim ntawv board, daim duab kos duab, kraft ntawv thiab cov ntawv ntim ntawv lossis lub rooj tsavxwm thiab lwm yam.
youtube
|
Qauv |
CHM-SGT1400H |
|
1. Hom kev txiav |
Sab saum toj hniav thiab hauv qab hniav rotary |
|
2. Qhov hnyav ntawm daim ntawv |
150-1000 GSM |
|
3. Reel txoj kab uas hla |
Max 1800mm (71 ") |
|
4. Ua tiav qhov dav |
Max 1500mm (59 ") |
|
5. Daim ntawv tiav-Length |
Yam tsawg kawg nkaus 400-Max.1700 mm |
|
6. Nr. ntawm rolls txiav |
2 yob |
|
7. Txiav raug |
± 0.5 hli |
|
8. Max. ceev txiav |
400 txiav / min |
|
9. Max. txiav ceev |
300m / min |
|
10. Kev xav tau ntawm huab cua siab |
0.8MPa |
|
11. Qhov hluav taws xob |
AC380V / 220Vx50Hz |
|
12. Tag nrho lub zog |
98 kWv |
|
13. Tso zis |
Cov zis tiag tiag nyob ntawm cov khoom siv, thiab qhov hnyav ntawm daim ntawv, thiab txoj kev khiav haujlwm zoo |
|
14. Nyhav: |
21 000 kg |
Product details
Nws pib-EPC (Edge Paper Control)
TechnicsNtawm Cov Khoom Siv
Raws li CHM cov khoom siv thev naus laus zis, phau ntawv no feem ntau qhia txog kev ua haujlwm ntawm nws pib tshuab ntawv txiav. Lub tshuab no tsuas yog siv rau daim ntawv ntawv hauv Paper Mill, Printing House thiab lwm yam, feem ntau cov txheej txheem suav nrog Unwinding-Cutting-Conveying-Collecting
KhoomFeature
1.The rotary ob chav hniav txiav system txais European technical, ruaj khov, ruaj, siab txiav precision.
2.Tom qab txiav cov nplooj ntawv tuaj yeem xa ncaj qha mus pub rau hauv lub tshuab luam ntawv nrog rau lub sijhawm thib ob ntawm ntug trimming ua.
3.EPC system Lub kaw lus tsis siv neeg kho qhov ntug ntawm daim ntawv yob los txhim kho txiav precision.
4.Npaj ntug daim ntawv yuav tawm ntawm lub tshuab los ntawm lub zog blower kiv cua thiab Y hom yeeb nkab.
5.Cross tej riam txais ib daim ntawv teb cutter riam, uas ua los ntawm British technical thiab cov khoom zoo. Txo lub suab nrov thiab lub sijhawm nqa ntev dua.
6.Nws txais yuav qhov zoo tshaj plaws ntxaib rotary riam sheeter, txiav qhov tseeb yog ±0.5mm.
Peb qhov zoo
FAQ
1.Dab tsi ntawm daim ntawv tuaj yeem koj qhov siab precision synchronize-fly sheeter tshuab txiav?
Kraft daim ntawv, cardboard, ntawv kos duab, ntawv nyias, ntawv coated, kab lis kev cai ntawv, thiab lwm yam.
2.Kuv muaj qee qhov kev cai rau peb cov khoom ua haujlwm? Koj puas tuaj yeem pab kuv?
CHM muab koj cov ntaub ntawv qhia thiab cov lus qhia raws li kev paub ntau xyoo hauv kev lag luam ntawv txiav. Peb tuaj yeem kho lub tshuab raws li qhov yuav tsum tau ua thiab tsim cov qauv tshiab. Cov kws tshaj lij thiab cov neeg ua haujlwm paub txog muaj peev xwm muab kev daws teeb meem raws li cov neeg siv khoom xav tau, thov koj xav nug peb cov lus nug.
3.Vim li cas thiaj xaiv peb cov khoom?
Tus nqi txuag, zoo siab, hloov tau yooj yim, siab tus nqi rov qab.
Cim npe nrov: Tuam Tshoj dual teb ntawv sheeter tshuab, Tuam Tshoj dual teb ntawv sheeter tshuab manufacturers, lwm tus neeg, Hoobkas
